جهاز تسجيل بيانات الرياح الجديد

Added أضف إلى عربة المشتريات

Despatched in 12-15 working days

This product will be despatched within 10-15 working days
---- QUESTIONS AND ANSWERS ----

الجديد LeWL مسجل بيانات الرياح كانت تصنع منذ 2008. وقد بعنا الآلاف من هذه المسجلات الصغيرة لبيانات الرياح في جميع أنحاء العالم ولها سمعة ممتازة بفضل استقرارها ودقتها وقدرتها على العمل في أصعب الظروف

مسجل بيانات الرياح الجديد وقد تمت إعادة تصميمها مع بعض التحسينات الرئيسية. وذلك بفضل مجتمع الرياح الصغير المتحمس. فقد استمعنا إلى ملاحظاتهم وقمنا بإجراء العديد من التحسينات:

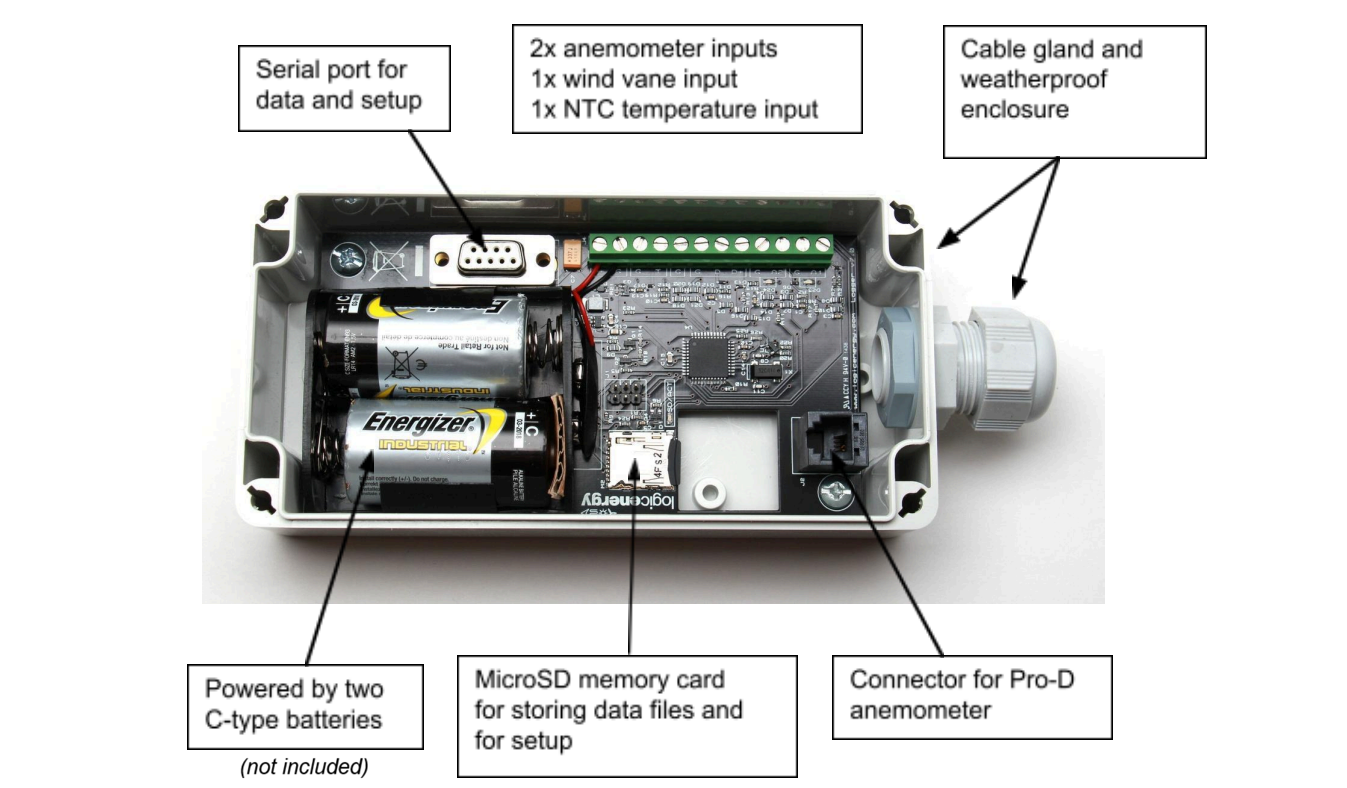

  • التركيب أصبح أسهل من أي وقت مضى، فقط قم بتوصيل جهاز ديدفيز لقياس شدة الرياح في الموصل الداخلي 6P4C. وإذا كنت تستخدم نوعاً آخر من مستشعرات شدة الرياح، فليست هناك أدنى مشكلة. كل ما عليك هو توصيل ‎وحدة الاستشعار الخاصة بجهازك مباشرة من خلال وحدة الاتصال الداخلية.
  • نظام الكشف الأوتوماتيكي عن أجهزة الاستشعار. مسجل سرعة الرياح الجديد سوف يعلمك عما إذا كانت هناك أية أجهزة استشعار متصلة وفي حالة التشغيل وذلك قبل أن تقوم بمغادرة الموقع
  • الخيارات الخاصة بأجهزة الاستشعار الحراري
  • شاشة مراقبة البطارية المدمجة
  • عمر البطارية يصل إلى عام كامل في حالة أن عملية التسجيل تتم على فترات تفصلها دقيقة واحدة
المواصفات
- يمكن تسجيل سرعة الرياح من جهازين للاستشعار في وقت واحد - متوسط سرعة الرياح، قمة العاصفة، والانحراف المعياري (التذبذب) واتجاه الرياح
- مدخلات أجهزة الاستشعار الحراري الخارجية
- يصل عمر البطارية إلى عام واحد في حالة إجراء عمليات التسجيل على فترات تفصلها دقيقة واحدة. ويصل عمل البطارية إلى ثلاثة أعوام في حالة عمليات التسجيل على فترات تفصلها عشر دقائق. (10 ثوان متاحة لأغراض الاختبار)
- البيانات التي يتم تسجيلها تبعاً للوقت على بطاقة التخزين MicroSD تخرج في صيغة CSV والتي يمكن عرضها من خلال برنامج الجداول الإلكترونية (Excel) أو من خلال برامج تحليل الرياح. وهذه البيانات تشمل قيم المستشعرات بالكامل، بالإضافة إلى حالة البطارية..
- تشمل كذلك أدوات تحليل بسيطة (قالب بصيغة Excel للمعالجة أو لتطبيقات الجافا)
- حاوية من طراز IP65 مؤمنة تماماً ضد العوامل الجوية
بطاقة ذاكرة SD
- الملفات بالتنسيق المعياري CSV ASCII، وتتم أرشفتها في شكل ملفات شهرية
- يتم تسجيل المتوسط، الانحراف المعياري والقيم العظمى
- يتم تسجيل البيانات مع إدراج الوقت والتاريخ
- بطاقة الذاكرة MicroSd تعمل بنظام FAT32
مدخلات لأربعة أجهزة استشعار
- يمكن تسجيل بيانات جهازين للاستشعار في وقت واحد (2 مدخل رقمي)
- يدعم مفتاح الاتصال الجاف (بدون تيار كهربائي)، مفتاح مفعول هول، مدخلات إشارة أجهزة المستوى المنطقي لسرعة الرياح من الطراز 3V أو جهاز الجمع المفتوح
- نوع جهاز استشعار اتجاه الرياح من حيث الجهد (1ك - 20 ك)
- يدعم جهاز استشعار درجة الحرارة الخارجية
منفذ تسلسلي للعرض على الكمبيوتر
- RS232 تدعم قراءة المعلومات أثناء تسجيل البيانات
- قائمة إعداد من خلال منفذ تسلسلي أو من خلال بطاقة ذاكرة SD
- 4800 بت في الثانية
- إعدادات مخصصة لعوامل الاستشعار من خلال RS232

معلومات ميكانيكية
 ( مراجعة لنا أولا لتطبيقات الطقس المتطرفة ) - درجة الحرارة التشغيلية من -40 درجة سيلزية إلى 70 درجة سيلزية
- حاوية IP65 محكمة الإغلاق مع نهايات مرنة لأسلاك أجهزة الاستشعار
- الأبعاد: 160x80x55 مم
- الوزن: 450 جم بما في ذلك البطاريات

تحميل دليل الاستخدام و حمل كتيب الإرشادات السريعة من هنا أو اطلع على الأسئلة الشائعة والفيديو الخاص بجهاز تسجيل الرياح

Customer Reviews

Based on 6 reviews
100%
(6)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
B
Bram Peirs
From Waste To Wind

We purchased Lewl Windlogger for our projects after technical support professionally explained what the error margin of the standard anemometer is compared to a calibrated one. WE are happy with the product and want to order more units.

F
Franko Arenas Díaz
Atacama Desert

Studying the aerosol/particulate material deposition for Atacama Desert, we set a west-east transect of dust traps starting close to the Pacific Ocean until the Andes Cordillera. To study the atmospheric deposition and its temporal-spatial dynamics we purchased 3 wind trackers close to the dust traps so we analyse the wind speed and direction. Excellent customer support with our first international purchase out of Chile.

B
Beat Hofer
Monitoring wind in Switzerland

The wind logger is installed near a cow barn, where I rented the roof, to put a 152 kWp PV-plant. Thus, it would be easy to connect a future wind generator with the electricity grid. To see if the wind is good enough to put a small wind turbine generator system in this area. I am loggin the wind for one year started in February 2023. Then I’ll decide to ask the local authority for permission. I installed the wind logger on a 12-meter pole. Looks like the wind speed in this area of Switzerland is not very promising. Although during winter wind is normally stronger, hence having windlogger is great decision.

B
Beat Hofer
thanks a lot for your commitment!

The set up of the wind logger was easy and worked from beginning as promised. My problem to import the CSV file in Excel, was quickly solved by the Windlogger team.

D
Dr. Alexander Fortelny
PERFECT customer service

When was needed, I have received all instructions regarding reading the data. Thank you very much for your efforts and the PERFECT customer service!

Customer Questions

Ask Question
0
Q: Can this wind logger measure temperature too?

A: Yes, it comes pre-configured to use this temperature probe: https://www.windlogger.eu/collections/sensors/products/temperature-thermistor We also recommend using a solar radiation shield if you intend to use the temperature probe under direct Sun light: https://www.windlogger.eu/products/radiation-shield-for-sensors

1
Q: Hello,I am interested in the LeWL setup for ecology research regarding wind-use in birds. I am wondering what the sensitivity is of the anemometer - for both high- and low- wind-speeds? Thank you,Kris

A: There're many many sensor options, it is probably best to contact us with more details about your requirements. In the meantime, have a look at these: https://www.windlogger.com/collections/sensors

2
Q: Hi guys,Do you have a MAC OS setup program for the LEWL by any chance?

A: Unfortunately not, however the setup is done using a simple text file that can be edited manually. When the new file is found by the data logger, then it loads its configuration. This process is described in the wind logger manual.

3
Q: Hi,How many days to reach buyer in Manila, Philippines. İ'd like to buy wind logger plus anemometer and wind vane.Thanks. Hope you response.

A: Hello, we usually dispatch within 2 working days. You should expect to have your items with you within a week. Feel free to contact us directly if you need more details.

4
Q: Is the sensor compatible with Anemometer Young?

A: Hello, it depends which model. You would need to use one with a pulse output.

5
Q: Hello,The wind direction angle recorded by these devices represents the direction the wind is blowing FROM? Does a 90º direction mean wind blows westward? Thank you, I purchased 4 anemometers of yours and they are just fine!

A: Yes, that is correct. The wind vane points where the wind is coming from, in the case of recording a 90º, the wind would be comfing from the East. 90º is East, and 270º would be West.

6
Q: I am interested in getting a new LeWL WindLogger, Could you tell me if the equipment has calibration report and what class it is?

A: Calibration certificates are done for the anemoeters (wind sensors). In this case, depending on the size of your project you may need a 1st Class MEASNET anemometer. Feel free to contact us with details, we will be happy to suggest the best option.
